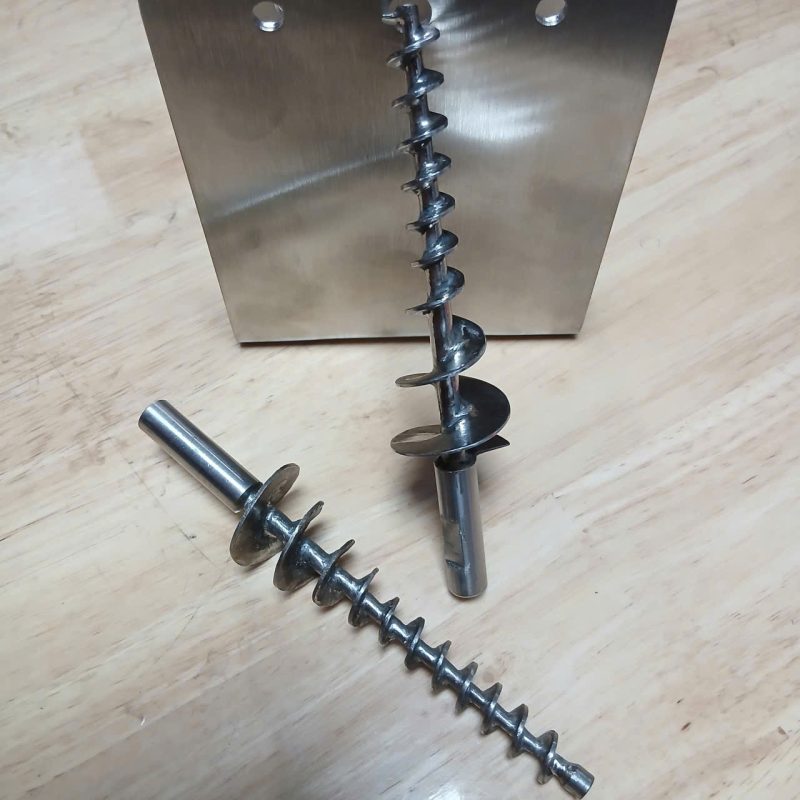

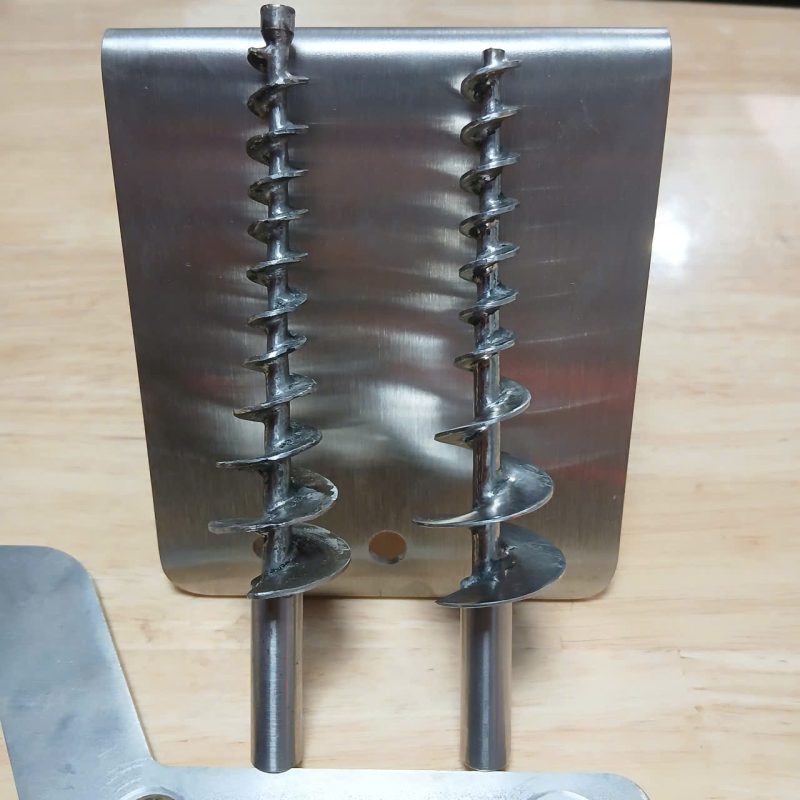

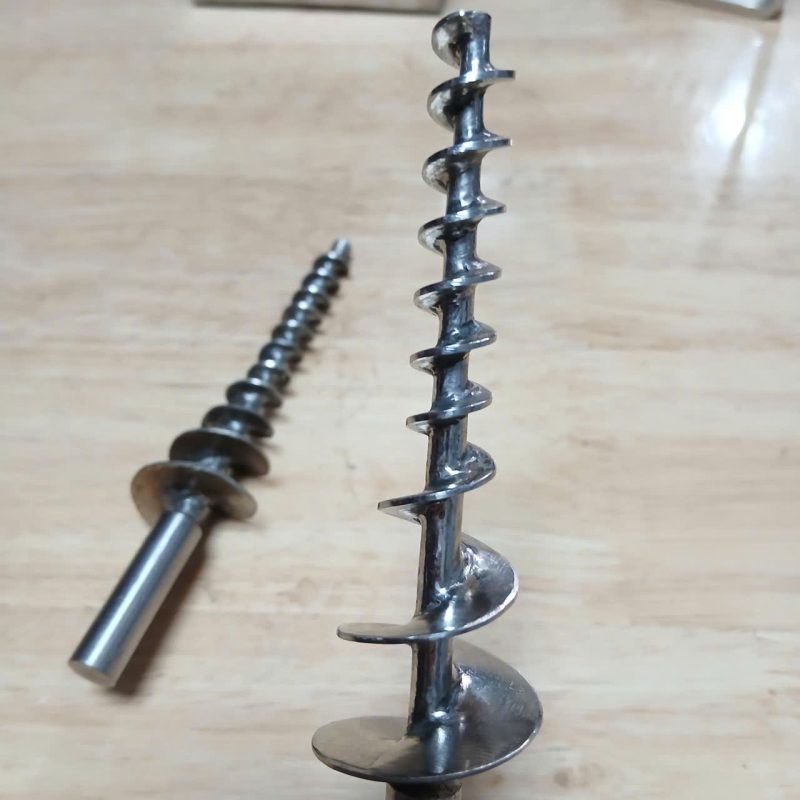

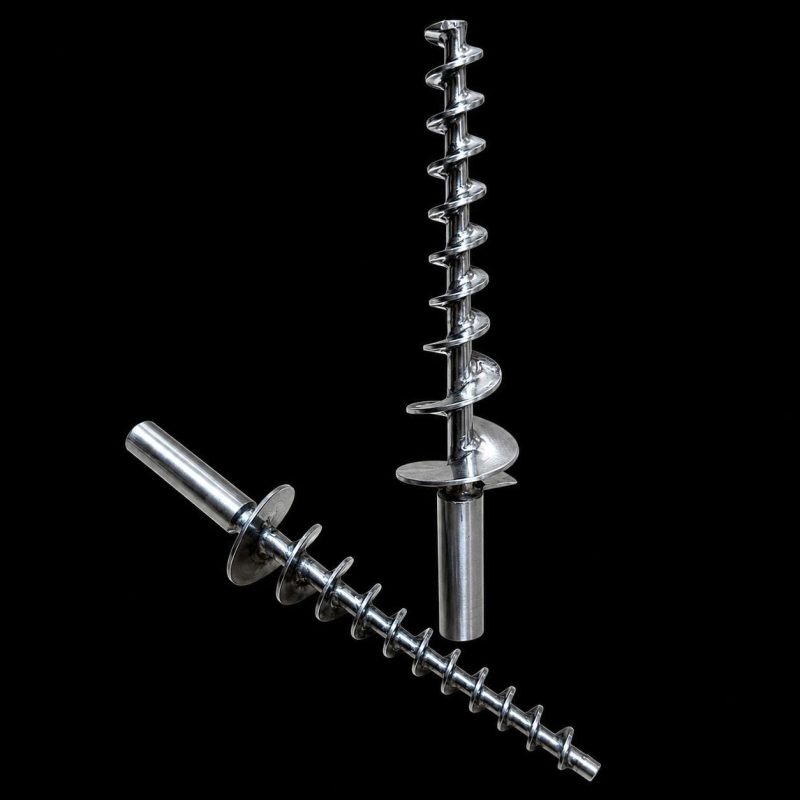

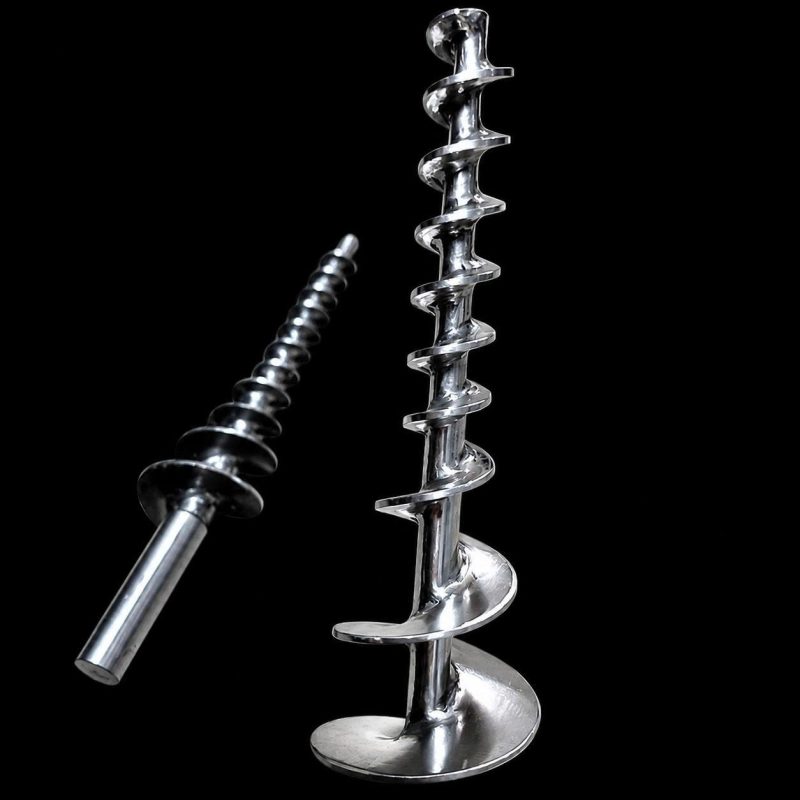

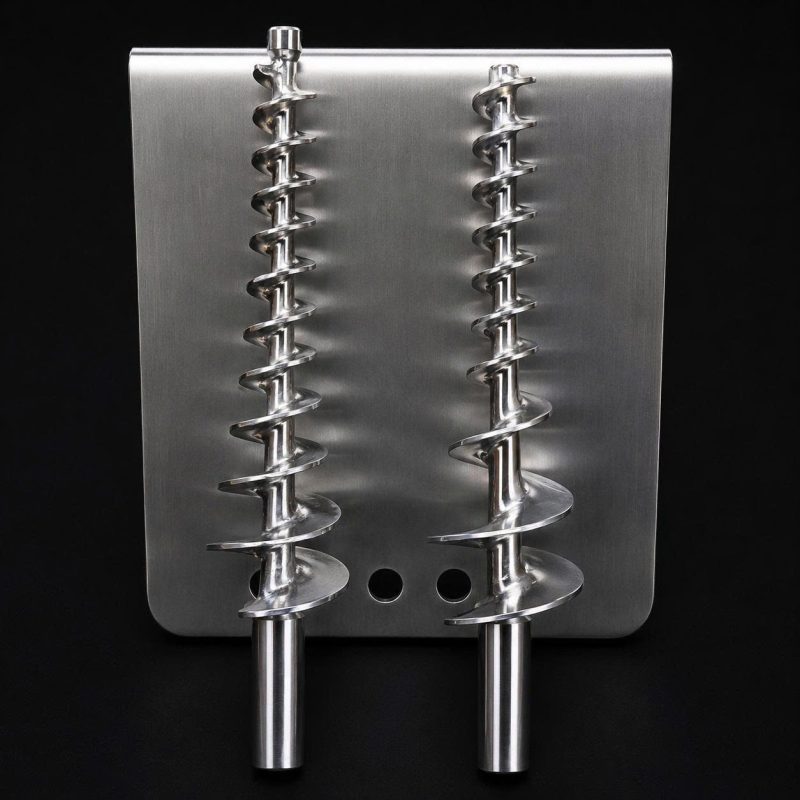

• Product Name: Pharmaceutical Mixing Screw.

  • Material: High-grade Stainless Steel (Inox 316L) – A specialized material for the pharmaceutical industry with excellent acid resistance, absolute corrosion resistance, and zero chemical reaction with drug components.

  • Precision Manufacturing Process:

    • 4-axis CNC Milling: High-precision machining of complex spiral profiles.

    • Surface Polishing: Complete removal of milling marks to achieve a mirror-like finish, ensuring an absolutely smooth surface.

  • Technical Specifications:

    • Surface Roughness: Ra < 0.2 µm (Complies with international food and pharmaceutical safety and hygiene standards).

    • Profile Tolerance: ±0.01mm (Ensures tight contact with the mixing tank wall, optimizing operational performance).

    • Concentricity: ≤ 0.01mm (Ensures stable operation without vibration at high speeds, extending equipment lifespan).

  • Product Applications:

    • Used in dry powder or liquid pharmaceutical mixing tanks within production lines meeting GMP (Good Manufacturing Practice) standards.

    • Applied in precision feeding devices requiring high cleanliness and absolute anti-stick properties for raw materials.
