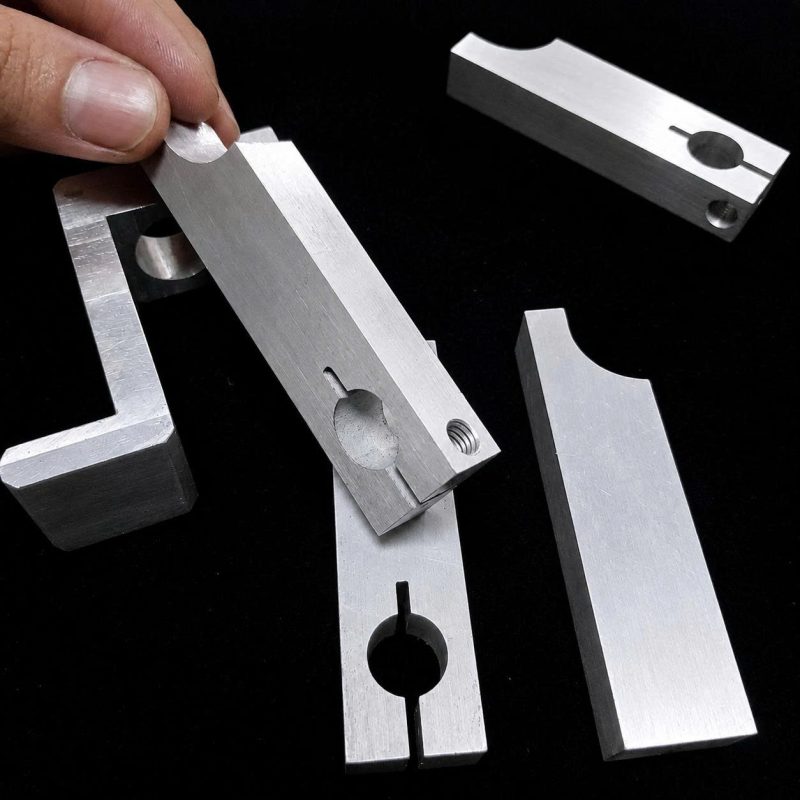

• Product Name: Shaft Support Block.

  • Material: Aluminum Alloy.

    • Advantages: Aluminum material helps reduce the overall system weight while maintaining high structural rigidity.

  • Precision Manufacturing Process:

    • CNC Milling: Machining block shapes, escape grooves, and curved profiles that require high precision to perfectly fit the shaft diameter.

    • Drilling and Tapping: High-precision machining of center holes and internal threads.

    • Slitting (Groove Cutting): Narrow groove milling to allow mechanical deformation for securely clamping the shaft.

    • Surface Treatment: Manual polishing.

  • Technical Specifications:

    • Shaft Hole Tolerance: Achieves H7 – H8 precision, ensuring a perfect fit with standard optical shafts or steel pipes.

    • Design: Clamping slot mechanism helps distribute clamping force evenly over the shaft surface, preventing scratches or shaft deformation during fixation.

    • Squareness and Parallelism: Strictly controlled within the range of ±0.01mm to ±0.02mm.

  • Product Applications:

    • Automation Systems: Securing guide rails, ballscrews, or sensors within production lines.

    • Machine Tool Manufacturing: Serving as supports for piping systems, frame pillars, or cross-clamping shafts.

    • Measurement Equipment: Used in inspection jigs that require flexible positioning combined with high rigidity once secured.
