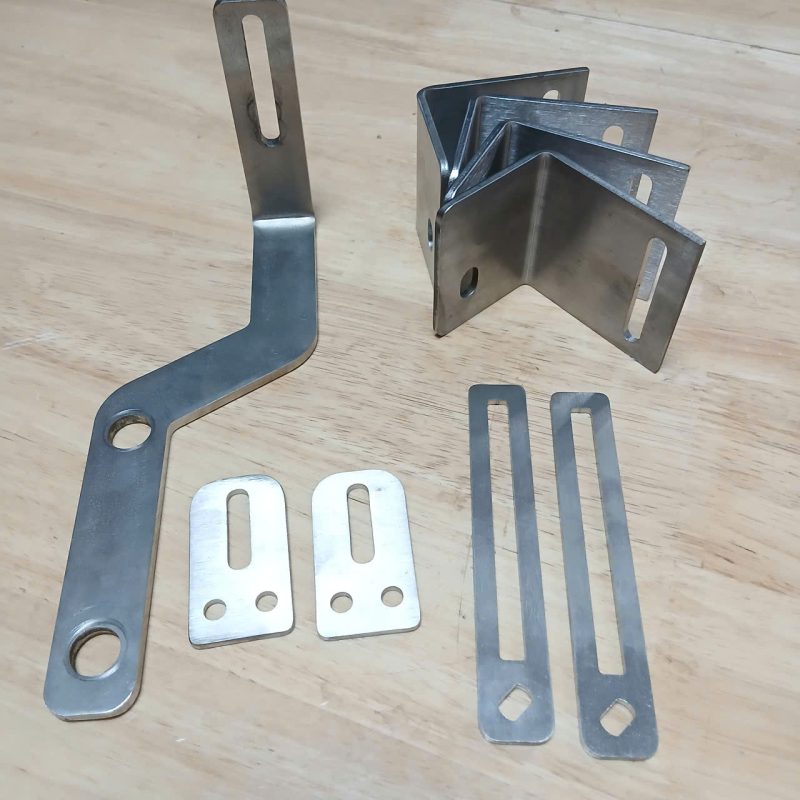

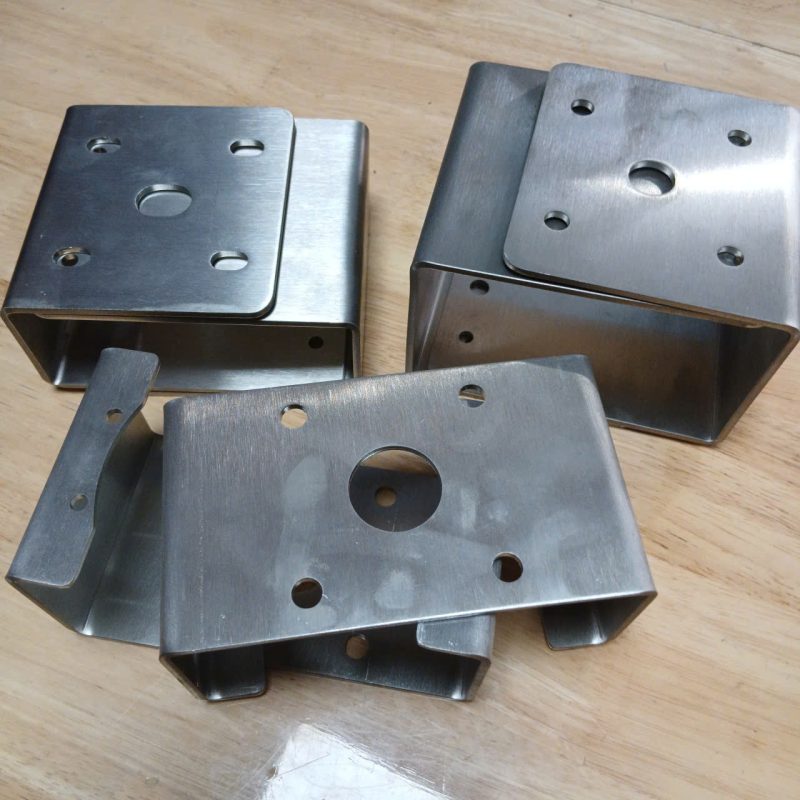

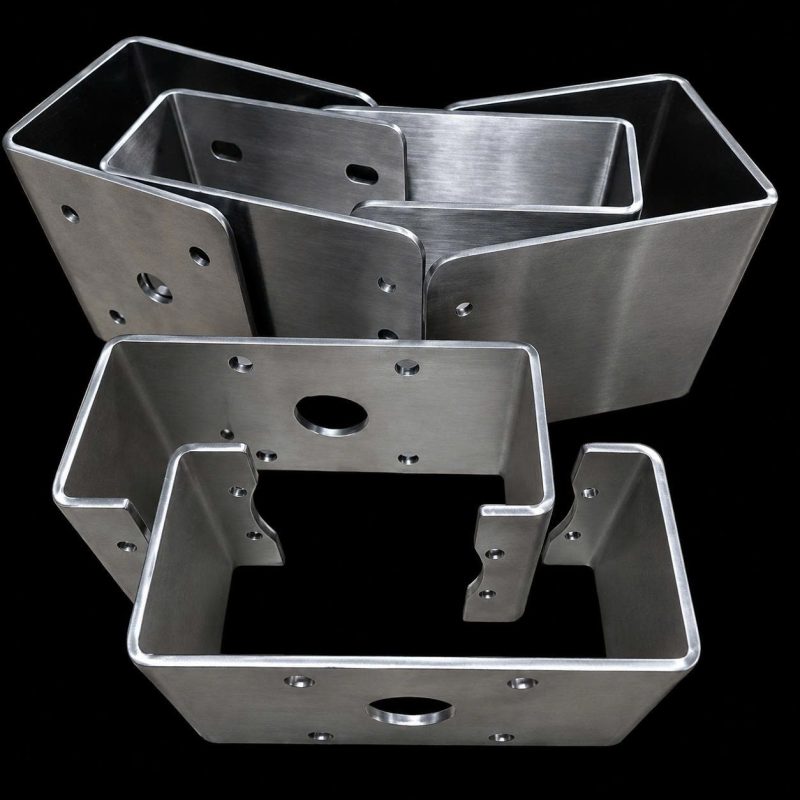

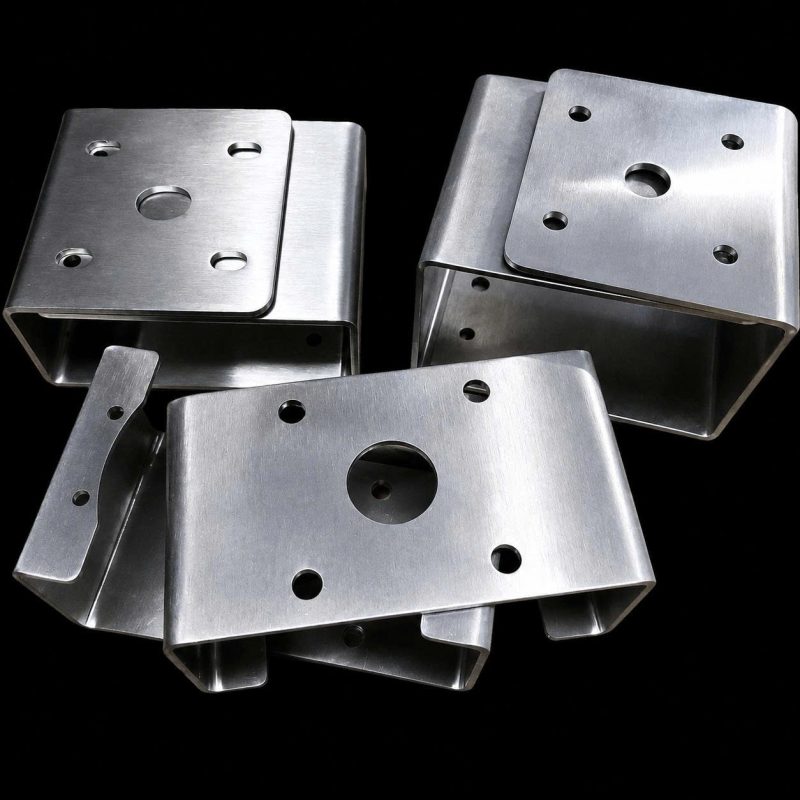

Product Name: Mounting Kit Brackets.

Material: Stainless Steel.

• Key Characteristics: High load-bearing capacity, corrosion resistance in chemical environments, steam, and harsh operating conditions within industrial plants.

Precision Manufacturing Process:

• CNC Laser Cutting: High-precision profiling of bracket shapes with sharp edges and no material deformation.

• CNC Bending: Uniform U-shaped and L-shaped angles, ensuring perfect perpendicularity and high load capacity.

• Precision Cavity Milling & Punching: Machining of bolt holes, center shaft holes, and vertical sliding slots for easy alignment during installation.

• Surface Treatment: Manual polishing and matte finish processing to enhance aesthetics and mechanical durability.

Technical Specifications:

• Material Thickness: Customized according to the actuator’s load, ensuring zero vibration during valve operation.

• Hole Dimensions: Machined according to ISO 5211 standards to fit most valves and actuators on the market.

• Tolerance: Strict control of shaft hole concentricity to ensure smooth torque transmission.

Product Applications:

• Intermediate Connection: Used for secure linkage between the valve body and automatic controllers such as pneumatic or electric actuators.

• Extended Equipment Lifespan: Facilitates perfect concentric alignment between the valve stem and the actuator shaft, minimizing wear and seal damage caused by misalignment.

• System Compatibility: Widely used in water treatment, food, pharmaceutical, and petrochemical systems that require stringent technical safety standards.
