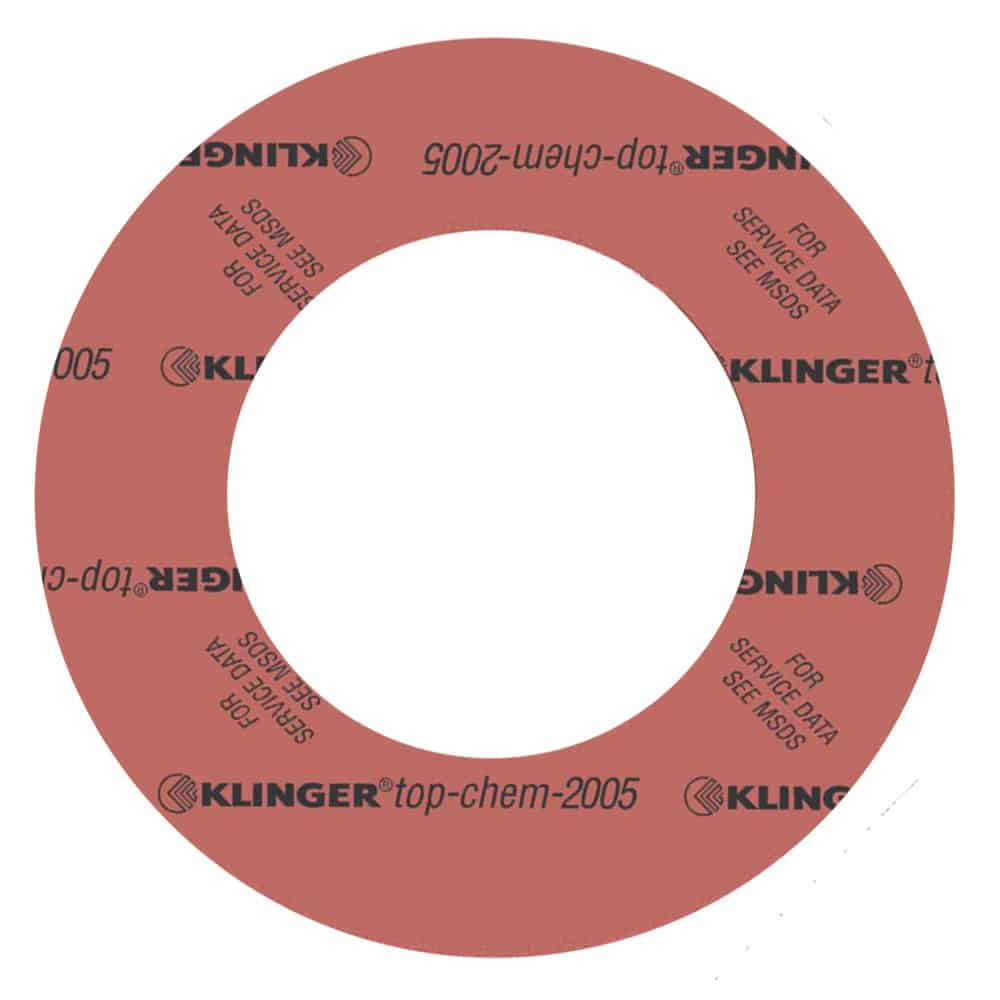

KLINGER®top-chem 2005

Material

PTFE with inorganic fillers.

pT diagrams

The Klinger pT diagram provides guidelines for determining the suitability of a particular gasket material for a specific application based on the operating temperature and pressure only. Always refer to the chemical resistance of the gasket to the fluid.

1. In area one, the gasket material is normally suitable subject to chemical compatibility.
2. In area two, the gasket materials may be suitable but a technical evaluation is recommended.
3. In area three, do not install the gasket without a technical evaluation.

Technical Data – Typical values for 1.5mm thickness

Compressibility ASTM F 36 J	3%
Recovery ASTM F 36 J	40%
Stress relaxation DIN 52913 30 MPa, 16 h/150°C	25MPa
Klinger cold/hot compression
23°C / 50 MPa	10%
260°C / 50 MPa	30%
Tightness DIN 3535/6	0.1 ml/min
Tightness DIN 28090-2	0.01 mg/s m
Thickness/weight increase
H2SO4, 100%: 18 h/23°C	1/1%
HNO3, 100%: 18 h/23°C	1/2%
Density	2.2g/cm3

Dimensions of the standard sheets

Sizes: 1500 x 1500 mm

Thicknesses: 1.0 mm, 1.5 mm, 2.0 mm, 3.0 mm; other thicknesses and sizes on request.

Thickness acc. DIN 28091-1, length ± 50 mm, width ± 50 mm

Function and durability

The performance and service life of KLINGER gaskets depend in large measure on proper storage and fitting, factors beyond the manufacture’s control. We can, however, vouch for the excellent quality of our products. With this in mind, please also observe our installation instructions.
