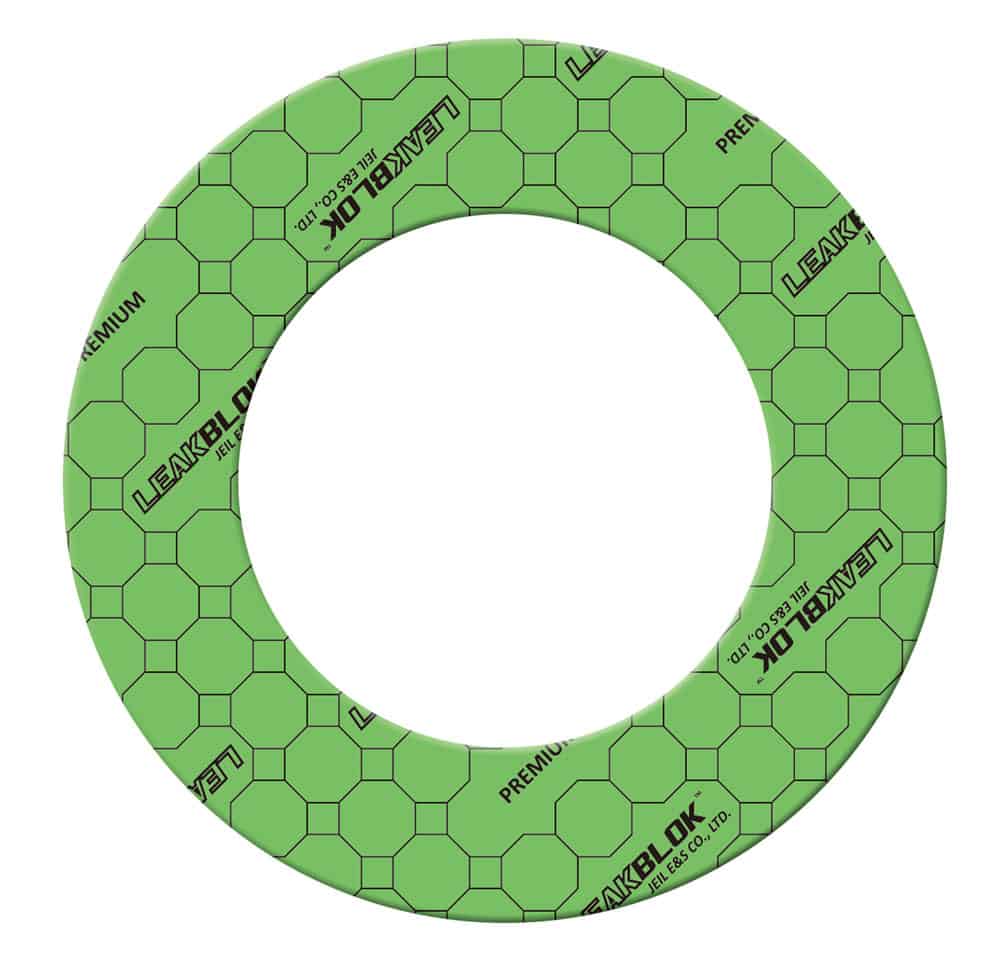

LEAKBLOK® Premium P100

Material Properties

Color	Green(Black Printed)
Composition	Aramid Fiber + NBR Binder
Fluids Service	Portable Water, Oils, Fuels, Salt Solution, Mild acids and alkalis, gas line
Pressure	Short-term peak 60bar(870 psi)
Temperature	Continuous -50°C (-58°F) ~ 180°C (356°F) Short-term peak -100℃(-148°F) ~ 260℃(500°F)
pH range	4-11
Thickness(mm)	0.8 ~ 3.2
Size(mm)	1270(W)×1270(L), 1500(W)×1500(L) Available in Rolls.
Certificates	Lloyd’s & ABS Type Approval , TA-Luft(VDI 2440), WRAS Fire Endurance Test(ISO 19921 & 19922)

Service Range

Area A	Satisfactory area subject to chemical compatibility
Area B	Usually suitable but required technical recommend by Khong Lieng
P×T(Max)	psi ×°F(bar×°C) / 309,720(10,800)

Physical Properties

Test Method	Description	LEAKBLOK^® P100
ASTM D792	Density (g/cm³)	1.9
ASTM F152	Tensile Strength Across grain. MPa (kgf/mm²)	10.0(1.02)
ASTM F36 Procedure J	Compressibility (%) Recovery (%)	10 75
DIN 3535 – 6	Gas permeability (ml/min)	≤ 0.01
DIN 52913	Relaxation Stress(MPa) -50MPa 16 hours @175°C	20
VDI 2440 (TA-Luft)	Leak rate ( mbar·l /(s·m) ) -at 150°C 48 hours	2·10^-8

Immersion Properties

Test Method ASTM F146	Description	LEAKBLOK^® P100
at 150°C×5hrs ASTM Oil no 3	Thickness Increase (%)	4
at 20~30°C×5hrs ASTM Fuel B	Thickness Increase (%) Weight Increase (%)	7 10

Gasket Design Data

Thickness (mm)	Gasket Factor (m)	Min. Design Seating Stress(y) Kgf/cm² (psi)
3.2	2.00	112(1600)
1.6	2.75	260(3700)
0.8	3.50	457(6500)

* All data are 1.5mm thickness typical value.

Innovative technology, LEAKBLOK^® , absolutely distinguished from the traditional way of calendar roll production.

It specially invented with environmentally friendly solvent free process.

Compare with previous product, it shows strong durability and superior at low seating stress.

Suitable for use Low pressure steam and clean line, excellent protection of fluid contamination.

Warning

Not available with max. temperature & pressure at the same time.
Guide line only, if outside this range contact us.
Do not re-use gaskets unless this is specifically indicated.
Do not use gasket compounds with gasket as this will adversely affect performance.
Please consult with Khong Lieng for application of steam & explosive gas line especially.
Please consuit to maximum length with Khong Lieng’s sales team.
